Backhoe

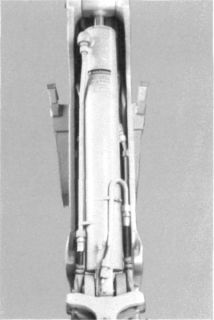

Single Protected Boom Cylinder
The 580K backhoe features a large single boom cylinder, mounted on the top center of the boom for maximum protection from any swing damage. Previous models had two boom cylinders.

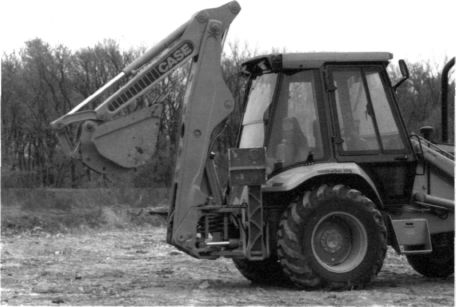

Completely New Backhoe Design
The 580K features a totally new backhoe from the main frame to the bucket, for increased strength, performance, serviceability and visibility.
For better strength to hold up under the toughest conditions, the swing tower, boom, dipper and stabilizer legs are made entirely from a proven, durable, cast ductile iron. (Previous Case backhoes and all competitors use fabricated steel.) The cast iron adds to backhoe strength because of:
□   No welds, for constant strength throughout the structures.
□   It has 62,000 psi (427 474 kPa) of tensile strength compared to 50,000 psi (344 738 kPa) for fabricated steel.
The new backhoe is still an over-center design for stability, shorter transport length and improved backhoe bucket to ground clearance. The boom, dipper and bucket each has a single cylinder for improved visibility into the trench.

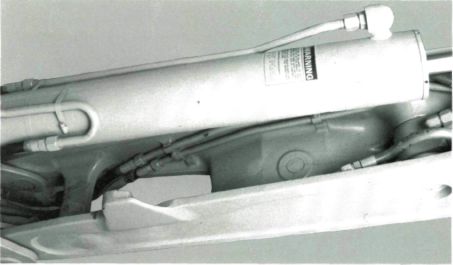

Protected Dipper Cylinder
The dipper cylinder is positioned within the boom structure, below the boom cylinder, for both protection and increased performance.
Larger Dipper Cylinder
The dipper cylinder bore diameter has been increased 1 inch (25.4 mm), to 5 inches (127 mm), while the rod diameter is .5 inch (6.4 mm) larger, improving dipper performance.
Protected Hydraulic Tubes and Hoses
The boom, dipper and bucket hoses and tubes are securely protected because they are routed within the boom. Yet, all hoses and tubes can easily be serviced through the open boom design.
