Standard 2" (51 mm) Retractable Seat Belts
2" (51 mm) retractable seat belts are standard equipment for both the non-suspension and suspension seats. Benefits of the retracting seat belts include:
D Belts are out of the way when not in use.
□ Belts stay cleaner because they are not on the floor.
□ Belts are more convenient to use, no groping to find them.
Note: 3" (76 mm) non-retractable seat belts are available as an option.
Optional Exterior Rear-View Mirrors
To aid in maneuvering around the job site, optional exterior rear-view mirrors are available. These mirrors are mounted off the left and right front ROPS posts.
Optional Suspension Seat
For improved operator comfort, the suspension seat now features an adjustable upper back rest. As in previous models, it has fore and aft adjustment, three-position seat rake, three-position suspension tilt and 180-degree pivot. For improved appearance, a rubber skirt covers the seat's suspension mechanism.

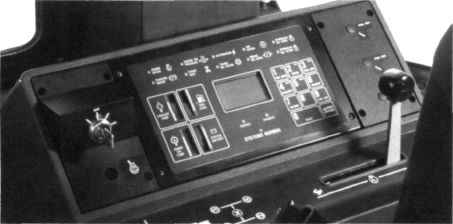

Optional Instrument Control Center
As an option, an instrument control center is available for either cab or ROPS canopy units. This panel electronically monitors the following circuits:
A warning light signals the operator if a malfunction occurs on any of the on/off status indicators. Along with the warning light, a three-second audible alarm goes off on the circuits noted. A continuous alarm alerts the operator of a malfunction of six critical functions.
The instrument panel also has a digital display of:
□ Engine rpm
□ Engine hours
□ Service hours
□ Ground speed.
Push buttons allow programming of:
□ Engine rpm
□ Ground speed
□ Engine hours
□ Security system D Service hours D Decode
□ Tire calibration
□ Reset.
On/Off Status Indicators
Light
3-second Audible Alarm
Continuous Audible Alarm
Engine crank speed Parking brake Engine oil pressure Front axle engaged Alternator
Transmission oil filter Air filter Brake oil level Hydraulic oil level Hydraulic oil filter Service indicator Security system System normal
Bar Graphs
X
X X X X X X X X X X X X
Bar Light Segments
X X X X X X
3-second Audible Alarm
X
X X X
Continuous Alarm
Engine coolant temperature Fuel level
Torque converter oil temperature System voltage
X
X X
X
X
X X
X
X
X
