Increased Ground Clearance at Backhoe Frame
For improved travel in rough terrain, the ground clearance at the backhoe frame has been increased 2.5 inches (64 mm), from 11.5 inches (292 mm) to 14 inches (356 mm).



Optional Auxiliary Hydraulics Standard Backhoe
An optional seventh valve section with control lever and hydraulics is available for standard backhoe units. This is required to drive dipperstick-mounted attachments such as hydraulic hammers.



Optional Auxiliary Hydraulics Extendahoe Backhoe
When the 580K is equipped with an Extendahoe backhoe, the Extendahoe hydraulics can be disconnected and used like auxiliary hydraulics to drive dipperstick-mounted attachments. This is easily done by locking the Extendahoe in the fully retracted position with a pin. Then tee off from the Extendahoe hydraulics and use the Extendahoe section to drive the auxiliary attachments.

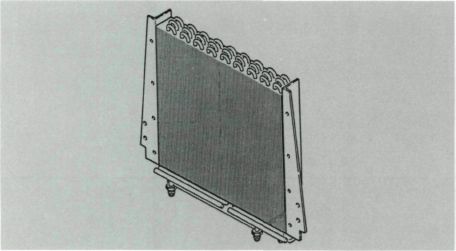

Larger Hydraulic Oil Cooler
When ordered with auxiliary hydraulics, the 580K comes with a larger hydraulic oil cooler for improved cooling. (Five rolls of cooling tubes in lieu of the three rolls shown.)
Optional Reversible (Flip) Stabilizer Pads
As a factory or field option, reversible (flip) stabilizer pads are available for the 580K. This flip pad incorporates two surfaces into one pad:
□ Iron pad for dirt applications.
□ Rubber pad for street applications.
Note: Air conditioning cannot be used with the optional auxiliary hydraulics and larger oil cooler.
