Electrical Area
System Protection

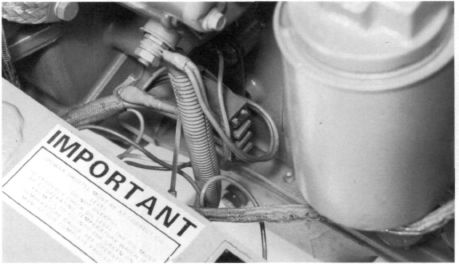

The electrical system for the starter and main electrical circuits is protected by three 30-amp blade-type fuses located in the 580K's engine compartment. Smaller amp blade-type fuses are used for individual circuits. The fuse box for the individual circuits is located on the front bottom side of the instrument panel and is easily accessible from the operator's compartment.
Large Standard Battery Box
The 580K is equipped with a battery box large enough to field-install dual batteries into the box without having to install a larger box. This results in cost- and time-saving benefits to both the dealer and the customer.
Sealed and Self-Locking Wire Connectors
For improved reliability and protection against dust, moisture and vibration, self-locking and sealed wire connectors are used on the 580K.
